Barriers and Drapes

It's important to put all tools and resources at your disposal to protect from scatter radiation. Our extensive line of lead barriers and drapes provide an extra layer of protection for your staff that they don’t have to wear.

Barriers

  1. Opaque Mobile Barriers with Window
    $1,880.00

    Reduce barrier cost in half with our window barrier. These barriers provide 2.0mm Pb equivalency and are offered in multiple sizes. Each size has a standard 10 x 12 inch window located at 60 inches from the base of the barrier. Heavy duty construction and locking castors provide years of maintenance free use.

  2. Ultra Barrier
    $8,075.00
    Provides full-body protection to groups of medical personnel assisting in or observing a procedure. Overall: 75"H x 75.5"W Window Pane: 36"H x 72"W - 2mm lead equivalency. Opaque Panel: 36"H x 72"W - 2mm lead equivalency.
  3. Jumbo Barrier
    $5,450.00

    Large 30” x 60” shatter resistant CLEAR-Pb glass window provides superb full height visibility.

    Overall: 75"H x 33.5"W

    Window Pane: 60"H x 30"W - 2mm lead equivalency.

    Opaque Panel: 12"H x 30"W - 2mm lead equivalency.

  4. Nuclear Medicine Barrier
    $3,350.00

    Specifically designed shorter and wider for shielding nuclear medicine personnel from patient-emitted
    radiation.

    Overall: 64"H x 39"W

    Window Pane: 24"H x 36"W - 2mm lead equivalency.

    Opaque Panel: 34"H x 36"W - 2mm lead equivalency.

  5. Regular Barrier
    $3,665.00

    This rugged mobile barrier can easily fit into the most confining of spaces and provides exceptional
    visibility.

    Overall: 75"H x 33.5"W

    Window Pane: 24"H x 30"W - 2mm lead equivalency.

    Opaque Panel: 48"H x 30"W - 2mm lead equivalency.

  6. Deluxe Barrier
    $5,870.00

    The large 48” wide shatter resistant CLEAR-Pb glass window provides unrestricted visibility and maximum protection for two or more people.

    Overall: 75"H x 52.5"W

    Window Pane: 36"H x 48"W - 2mm lead equivalency.

    Opaque Panel: 36"H x 48"W - 2mm lead equivalency.

  7. Contoured Mobile Leaded Barrier
    $4,515.00
    The Contoured Mobile Leaded Barrier with 20” x 24” Window is a portable, full-body radiation barrier for protection against secondary radiation. It features a 20” x 24” 2.0mm lead equivalency glass window for viewing. Its steel construction features contoured sides and a locking castor system for ease of mobility.
  8. Tilted Mobile Barrier
    $4,720.00

    Radiation Protection designed to provide a safer,
    more direct line of sight.



  9. Reach Through Tilted Mobile Barrier
    $5,093.00

    Radiation Protection designed to provide a safer, more direct line of sight.



  10. Adjustable Height Barrier
    $5,460.00

    Radiation protection barrier with adjustable lead-acrylic shield

Drapes

  1. Above table attachment for the DRP1000 & DRP2000
    $840.00
    • Compatible with double (drp2000) and single (drp1000) pivot models.
    • 22" W x 9" quick attach shield provides additional protection above the swing arm.
    • 0.5mm lead equivalency.

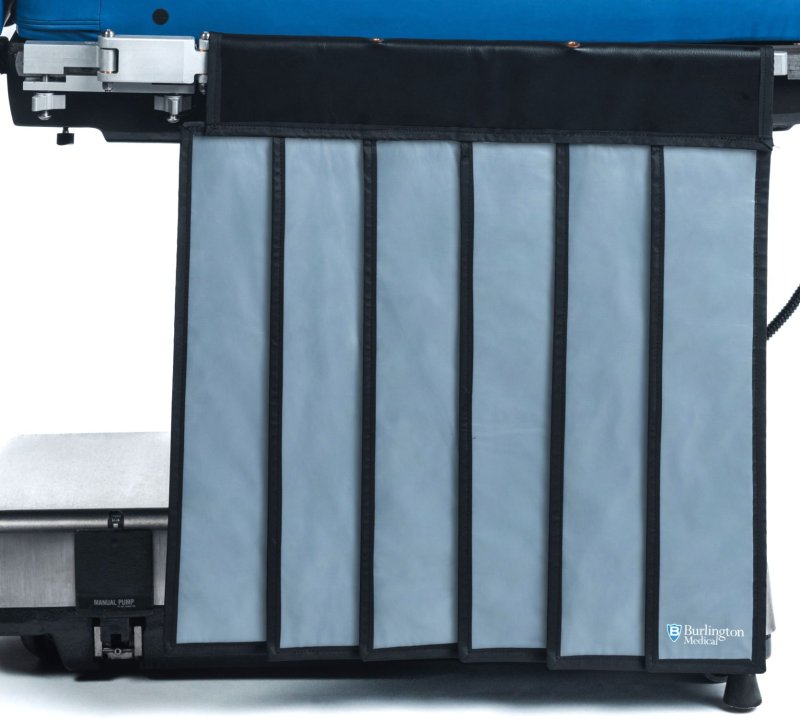

  2. Single Pivot Swing Arm Drape
    $2,520.00
    • Quick and easy assembly with slide on drape design.
    • Requires only 8" of railing for attachment.
    • Lightweight aluminum construction.
    • Universal design fits both sides of the table.
    • Creates a 26" wing of protection under the table.
    • 28" long panels come standard, but can be customized to your needs.
    • 0.5mm lead equivalency.
    • 6 panel design for ease of use with a C-Arm.

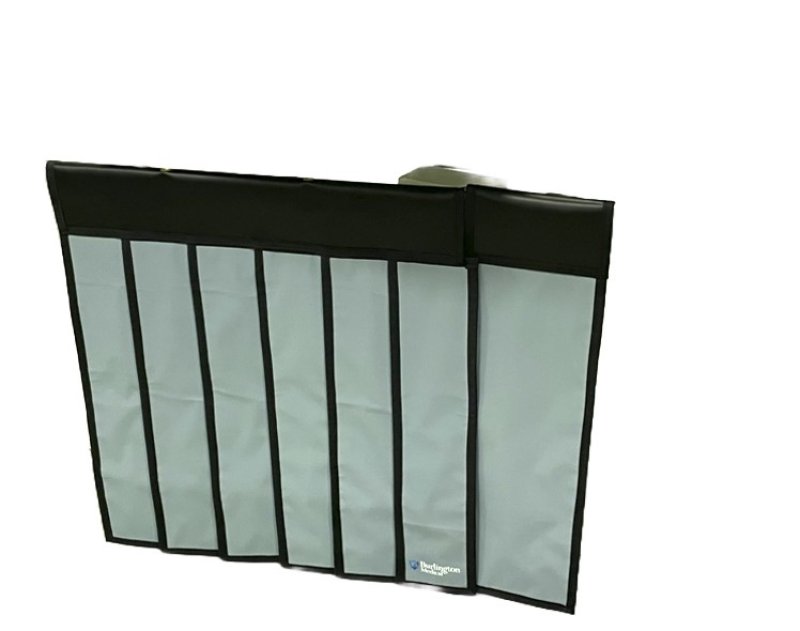

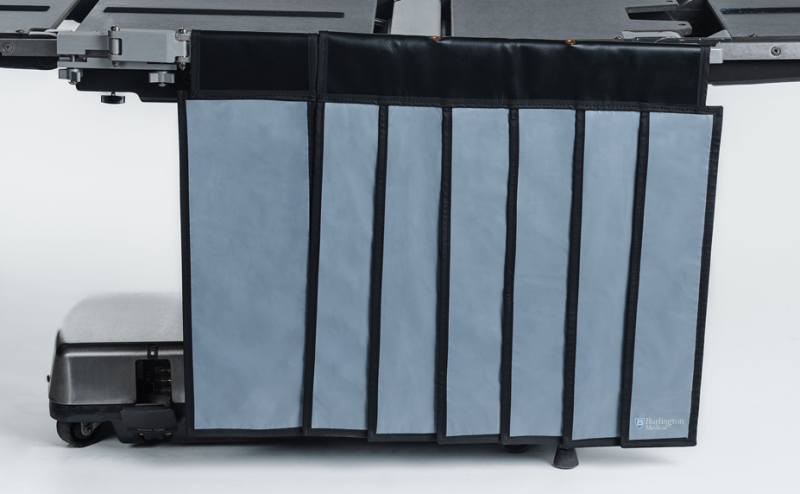

  3. Double Pivot Swing Arm Drape
    $3,623.00
    • Double Pivot design allows the drapes to conform to most table shapes.
    • Quick and easy assembly with slide on drape design.
    • Requires only 8" of railing for attachment.
    • Lightweight aluminum construction.
    • Universal design fits both sides of the table.
    • Creates up to a 36" wing of protection under the table.
    • 28" long panels come standard, but can be customized to your needs.
    • 0.5mm lead equivalency.
    • 8 panel design for ease of use with a C-Arm.

Porta Shields

  1. Lead Porta Shield with Stand
    $366.00

    Mobile radiation protection shield covered with a stain resistant, washable nylon fabric. Available in three lengths (24” shown). Pole adjusts from 36”- 52” in height. 24”W Base.

  2. T-Base Porta Shield
    $604.00

    Features and Benefits:

    • High quality all steel construction
    • T-Base design provides excellent stability and easy positioning around equipment
    • Easy glide wheels allow for smooth movement around the procedure room
    • Lockable caster wheels make it easy to secure in place
    • Posi-Lock height adjustment arm with spring-laoded pin for easy changed in height
